Pentacubits – The Pieces
Pentacubits – A Puzzle Based on a Rhombus
Each of the twelve Pentacubits is composed of five rhombi. The Pentacubits belong to the family of Polycubits.
The base unit of the Polycubits is a rhombus with interior angles of 60° and 120°. These rhombi fit seamlessly into the cubit grid shown.
There are: 1 Dicubit, 3 Tricubits, 4 Tetracubits, 12 Pentacubits, 27 Hexacubits, and 78 Heptacubits.

Pentacubits-Puzzles
Symmetric Shapes Made from Pentacubits

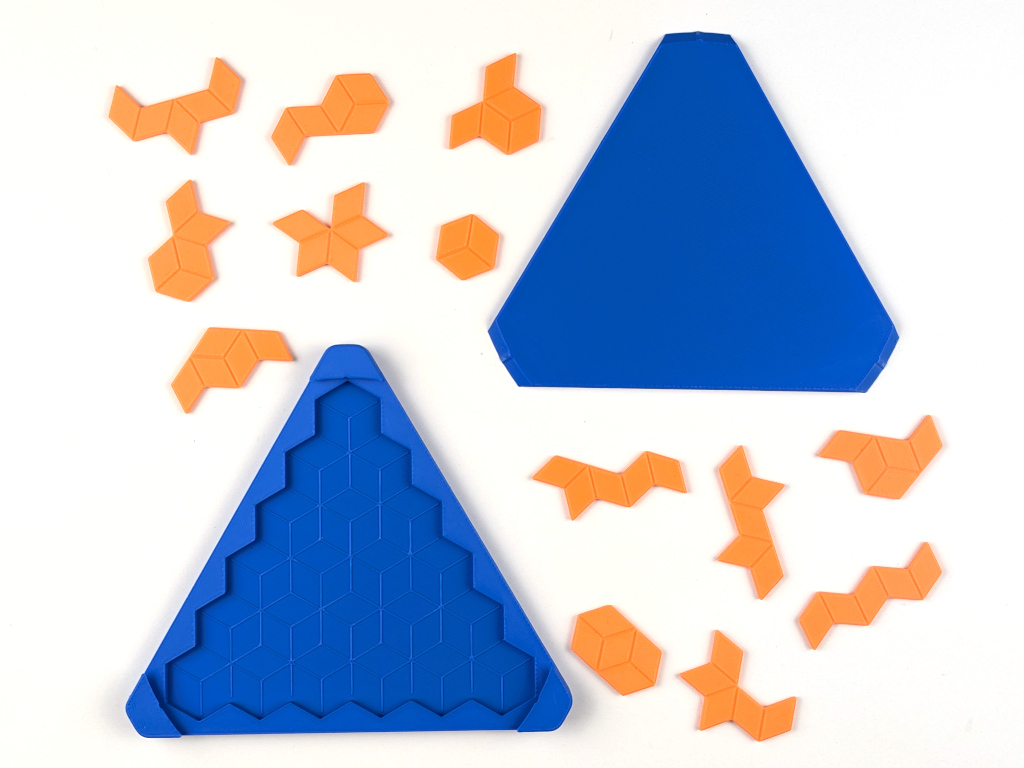

Shapes composed of all 12 Pentacubits cover an area of 60 rhombi. However, a fully filled equilateral triangle requires 63 rhombi. For this reason, the 3D-printed puzzle version includes one additional Tricubit.
The underlying cubit grid allows shapes with six lines of reflection and six-fold rotational symmetry. Fully symmetric shapes made solely from the 12 Pentacubits are, however, (presumably) impossible.
The puzzle was developed with support from the PolySolver program.

Some Shapes made from Pentacubits












Resources & Downloads
3D Print Templates

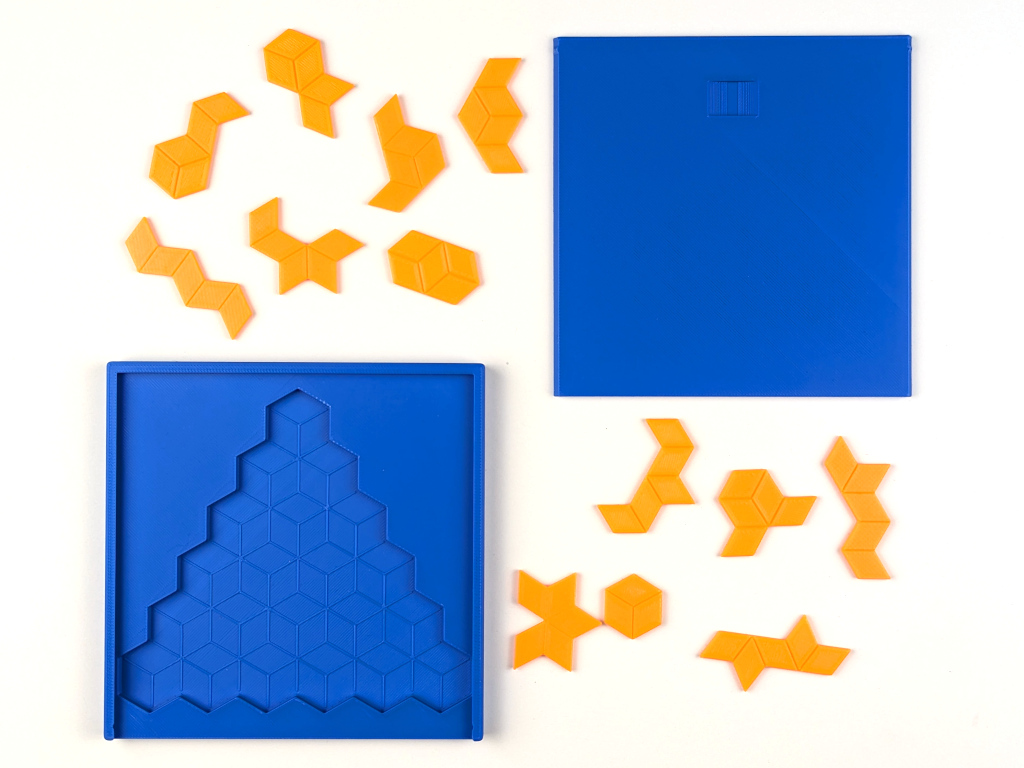

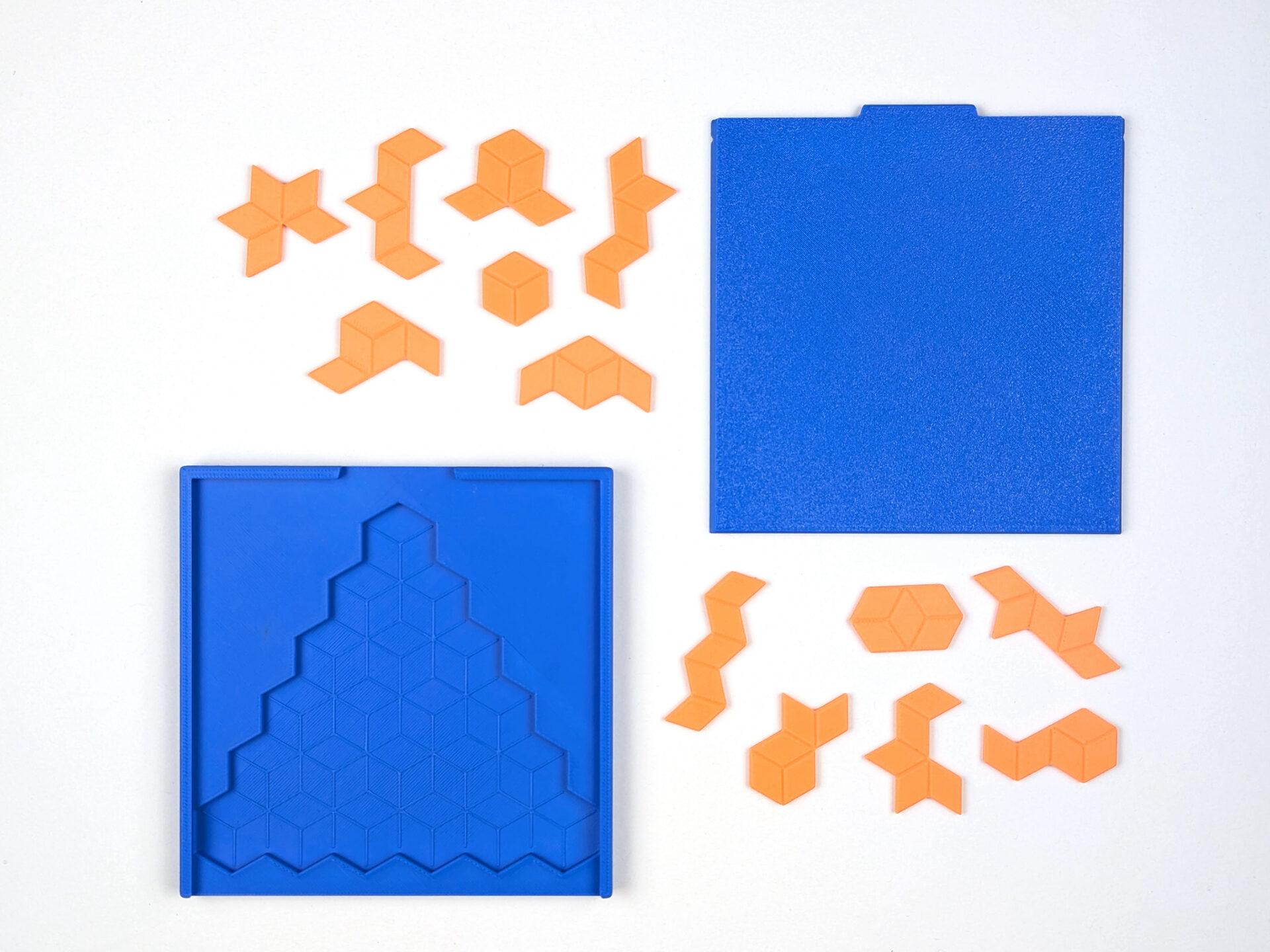

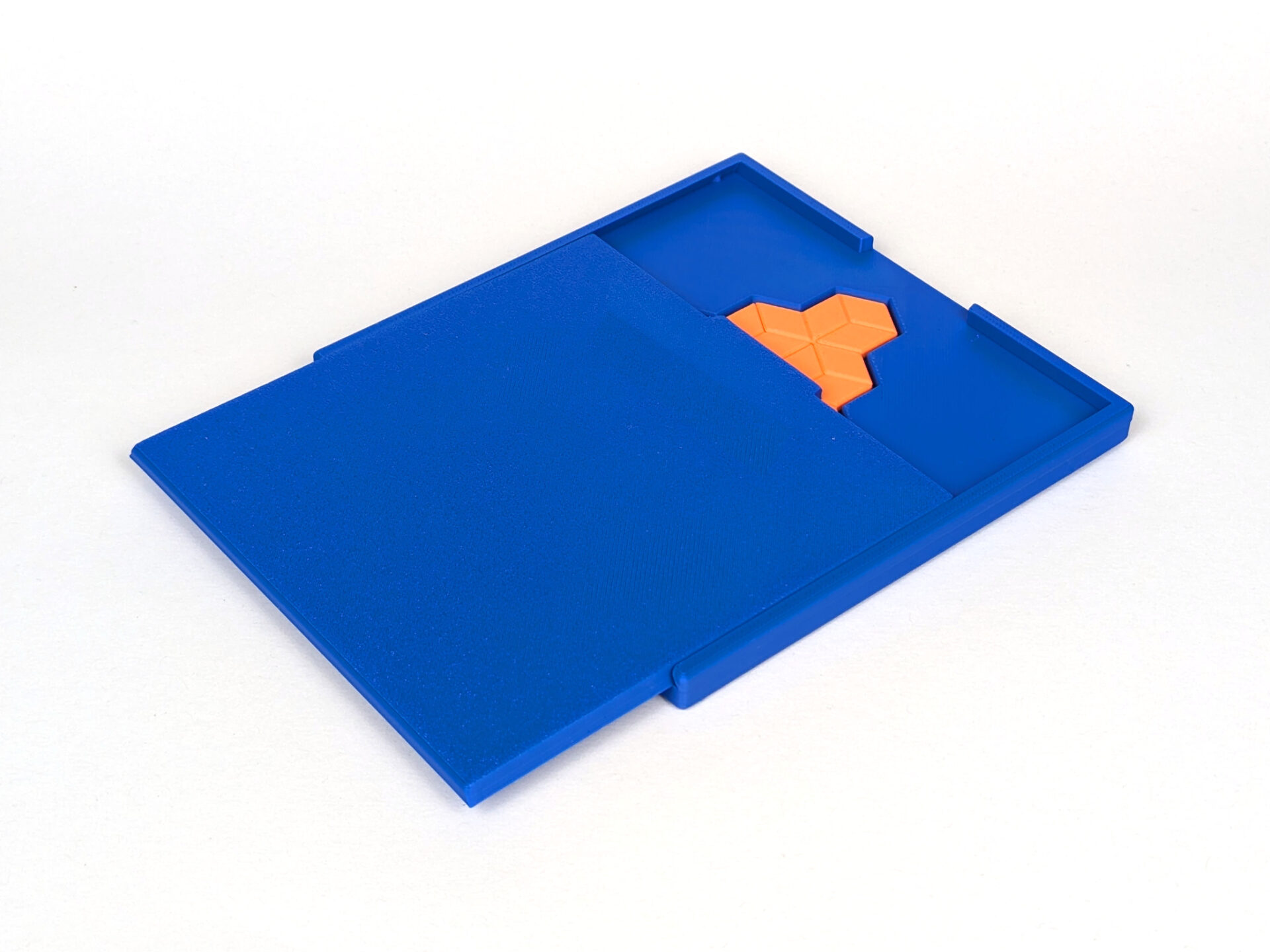

The 3D-print templates consist of the 12 Pentacubits and 1 Tricubits puzzle pieces and a box.
